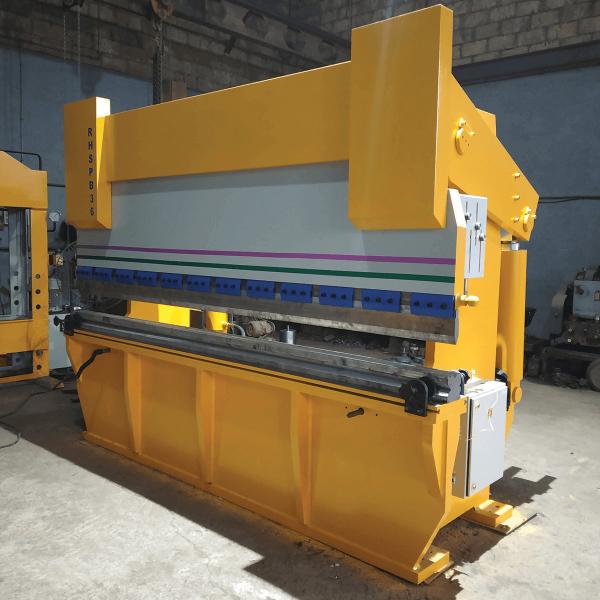

    Wc67k-63/3200 Wc67k-63t/2500 60 Ton Aluminum Press Brake Cnc Controller

    Ask Lasest Price
    Brand Name : LAMI-NOVA
    Model Number : P-125TN/3200
    Certification : ce
    Price : $20,000.00/Sets >=1 Sets
    Supply Ability : 300 Set/Sets per Year
    Delivery Time : 40 days
    • Product Details
    • Company Profile

    Wc67k-63/3200 Wc67k-63t/2500 60 Ton Aluminum Press Brake Cnc Controller

    High Quality Long Service Life 3750*1550 *2510mm CNC hydraulic press brake machine / cnc press brake machine


    1. Machining accuracy is high: backgauge repositioning accuracy of 0.1mm ram repositioning accuracy of 0.1mm.
    2. Large processing range: This product slider stroke is 265mm, closed height is 480mm, column distance is 2700mm, backgauge X axis stroke is 500 mm; compared to ordinary products, the products can less you trouble of the following accumulation

    3. This product adopts the main motor with large power, large flow pump, it can realize adjustable speed, fast speed can easily reach 220mm/s. T&L Brand Hybrid Servo CNC hydraulic press brake machine / cnc press brake machine
    4. This product can reduce the heat generation, hydraulic oil temperature is low, the maximum limit to reduce the damage to the hydraulic components, to extend the service life of the product
    5. Electro-hydraulic system is adopted to control dual cylinders to get high synchronized controlling accuracy, high bending accuracy, and repositioning accuracy
    6. Hydraulic auto compensation system is adopted to eliminate the effect of the deformed sliding block during bending which may affect bending quality.
    7. Multi-functional backgauge which can be expanded into 6 axes, i.e., X1 and X2 axes for back and forth, R1 and R2 axes for up and down and Z1 and Z2 for left and right. The workpiece bending can be realized flexibly.

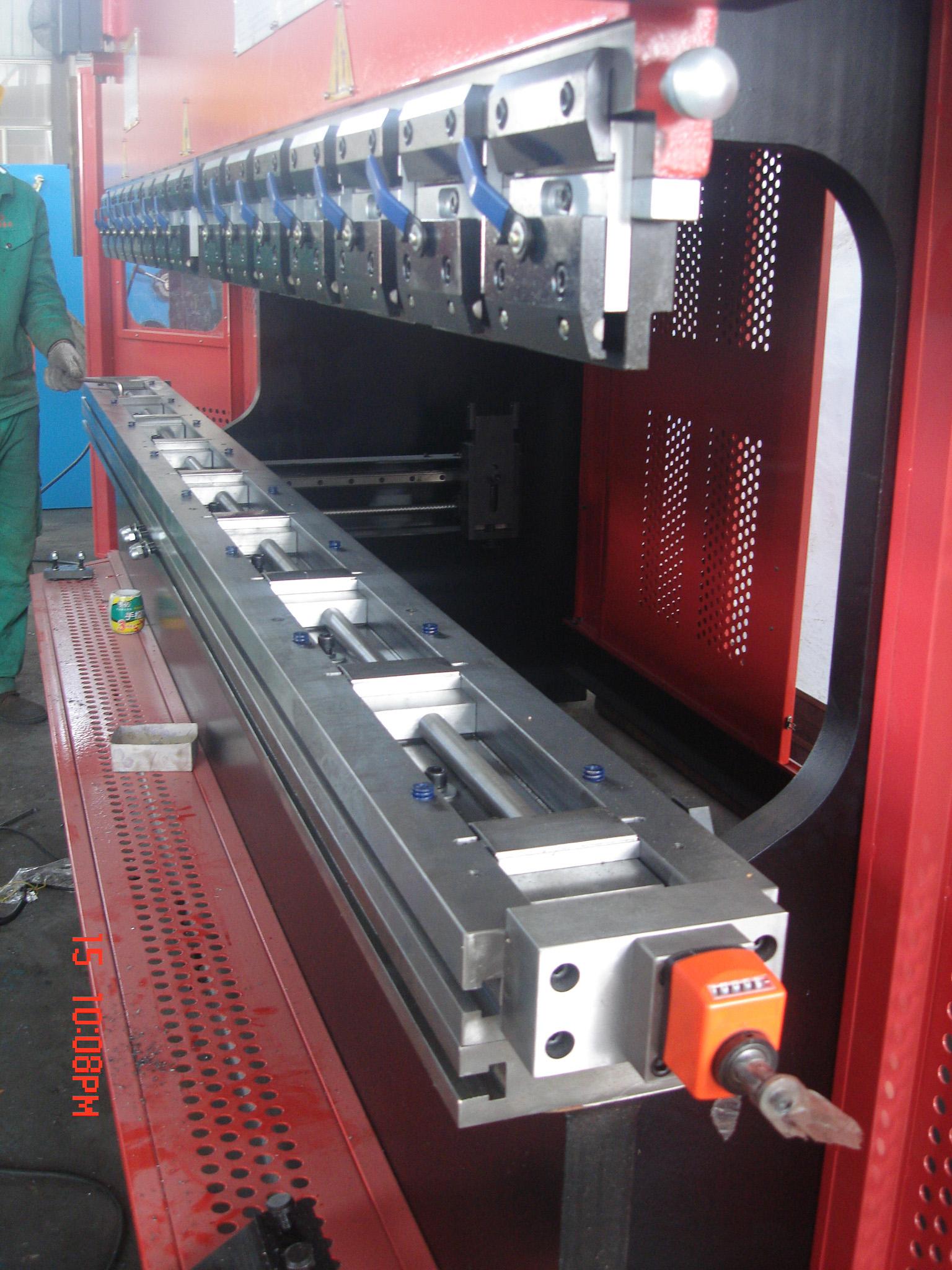

    8. Segmented punch can be combined with certain length according to the bending requirement of special workpiece.

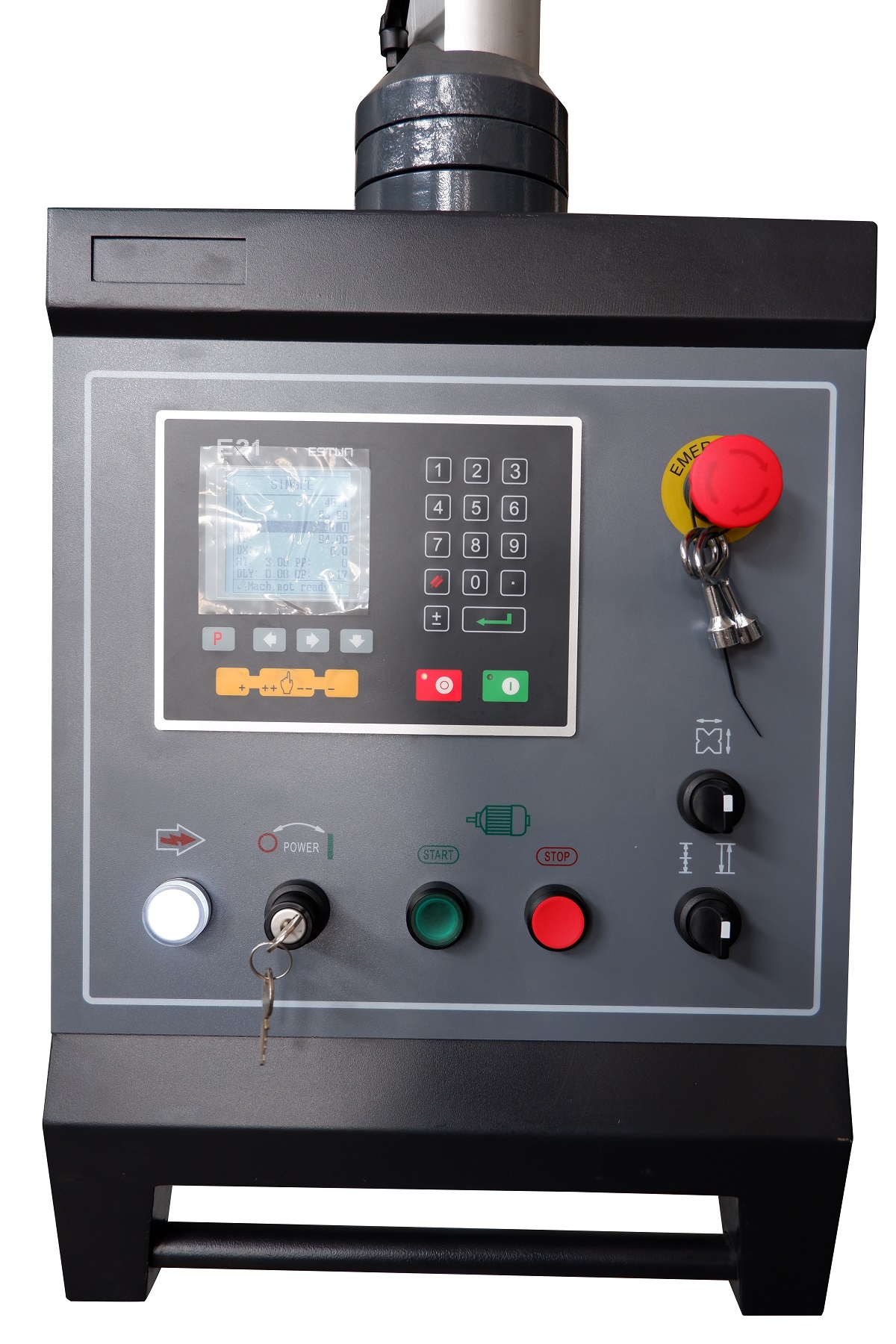

    9. CNC system adopts Delem DA66T/ DA52S CNC system.




    modelbending lengthdistance between framestonnagethroat depthbeam strokeday lightbeam approach speed(fast)beam working speed(slow)beam retuern speed
    WC67Y-40T/2000200016204020010032050840
    WC67Y-40T/2500250020804020010032050840
    WC67Y-63T/2200220015506325010032050
    WC67Y-63T/25002500208063250100320507.550
    WC67Y-63T/32003200270063250100320507.550
    WC67Y-80T/25002500208080250100350507.550
    WC67Y-80T/32003200270080250100350507.550
    WC67Y-100T/250025002050100320140406607.555
    WC67Y-100T/320032002700100320140406607.555
    WC67Y-100T/400040003150100320140406607.555
    WC67Y-125T/320032002700125320140406607.555
    WC67Y-125T/360036003000125320140406607.555
    WC67Y-125T/400040003150125320140406607.555
    WC67Y-140T/32003200270014032015041560755
    WC67Y-140T/40004000315014032015041560755
    WC67Y-160T/32003200260016032015042060855
    WC67Y-160T/40004000315016032015042060855
    WC67Y-200T/32003200260020032018044560855
    WC67Y-200T/40004000315020032018044560855
    WC67Y-250T/32003200260025040020048050650
    WC67Y-250T/40004000315025040020057050650
    WC67Y-300T/32003200250030040025063040850
    WC67Y-300T/40004000307030040025063040850
    WC67Y-300T/50005000400030040025063040850
    WC67Y-300T/60006000490030040025063040850
    WC67Y-400T/40004000300040040030077040850
    modeloil capacityback gauge strokeback gauge speedback ballscrew accuracymotor powerlength*width*heightheight under floorappro weight
    WC67Y-40T/200098L600mm20mm/s0.1mm5.52550*1450*20917403.6
    WC67Y-40T/2500125L600mm20mm/s0.1mm5.53050*1450*21408004.6
    WC67Y-63T/2200102L600mm20mm/s0.1mm5.53050*1500*21808004.6
    WC67Y-63T/2500197L600mm20mm/s0.1mm7.53050*1500*21808204.8
    WC67Y-63T/3200290L600mm20mm/s0.1mm7.53750*1500*22308205.6
    WC67Y-80T/2500197L600mm20mm/s0.1mm7.53050*1500*21807905.2
    WC67Y-80T/3200290L600mm20mm/s0.1mm7.53750*1500*22308406
    WC67Y-100T/2500210L600mm20mm/s0.1mm7.53050*1550*24008006.2
    WC67Y-100T/3200315L600mm20mm/s0.1mm7.53750*1550*25008607.5
    WC67Y-100T/4000315L600mm20mm/s0.1mm7.54550*1550*25008609
    WC67Y-125T/3200315L600mm20mm/s0.1mm7.53750*1550*25008607.5
    WC67Y-125T/3600315L600mm20mm/s0.1mm7.54150*1550*25008608.2
    WC67Y-125T/4000315L600mm20mm/s0.1mm7.54550*1550*25008609
    WC67Y-140T/3200305L600mm20mm/s0.1mm113750*1600*25008008.5
    WC67Y-140T/4000305L600mm20mm/s0.1mm114550*1600*253080010.5
    WC67Y-160T/3200307L600mm20mm/s0.1mm113750*1640*25008109
    WC67Y-160T/4000380L600mm20mm/s0.1mm114550*1640*254081011
    WC67Y-200T/3200300L600mm20mm/s0.1mm153760*1640*255078014
    WC67Y-200T/4000385L600mm20mm/s0.1mm154550*1640*265078017
    WC67Y-250T/3200375L600mm20mm/s0.1mm18.53750*1900*280083014
    WC67Y-250T/4000385L600mm20mm/s0.1mm18.54550*1900*295087018
    WC67Y-300T/3200540L600mm20mm/s0.1mm223750*2200*280081020
    WC67Y-300T/4000840L600mm20mm/s0.1mm224550*2200*325081022.5
    WC67Y-300T/5000 600mm20mm/s0.1mm225100*2560*4500 28
    WC67Y-300T/6000 600mm20mm/s0.1mm226550*2200*3600 34
    WC67Y-400T/4000 600mm20mm/s0.1mm304550*2400*3800 24
